Description

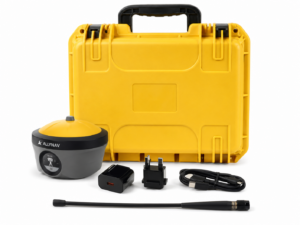

Standalone R92 receiver – Build to give you very long range link without having to use a external radio and having to use a big and heavy car battery to power it for the day. Now its all build into one receiver, and much more. Antenna is on the top now to give you maximum range. Fieldsoftware(controller) can be used with any Android phone or device (field software sold separately). Perfect for surveyors who want the best performance and already have a controller or want to add a premium receiver to their fleet.

• RTK Accuracy: Horizontal: 8mm + 1ppm (RMS) Vertical: 15mm + 1ppm (RMS)
• Track all availible Sattelites
• Bluetooth: BT 2.1 + EDR / 3.0 / 4.1 / 4.2 LE
  (BT 4.2 supported on Android 7.1 and above)
  Wi-Fi: 2.4 GHz, 802.11 b/g/n
  4G:
  LTE-TDD: B38 / B40 / B41
  LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20
  UMTS / HSPA+: B1 / B8
  GSM / GPRS / EDGE: 900 / 1800 MHz
  WEBUI: Supported
• Frequency range: 410–470 MHz
  Operating mode: Half-duplex radio
  Power: 2 W / 5 W
  Protocols Supported: SOUTH, TRIMTALK, TRANSEOT,
  TRIMMARK3, SATEL, TT450S, CSS, SP, etc.
  Working Range: Up to 20 km
• Operating time:
  Rover (CORS mode): up to 36 hours;
  Base station mode: up to 14 hours
  Input voltage: 12 V / 2 A
  Battery capacity: 13,200 mAh
  Storage capacity: 32 GB
• Differential Data: RTCM 3.X
  Positioning Data: NMEA-0183
  Static Data: Binary format
• The list just goes on and on

Options:

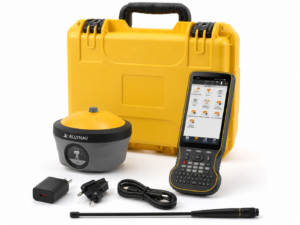

Description

Complete R92 rover system with Y55 controller, survey software pre-loaded. Ready to survey out of the box. Not just a super base station receiver. Can easily be used as a Rover without complicated configuration

Includes:

• R92 GNSS Receiver
• Y55 Professional Controller
• AllyNav survey software pre-loaded
• Carry case
• All cables, chargers and accessories

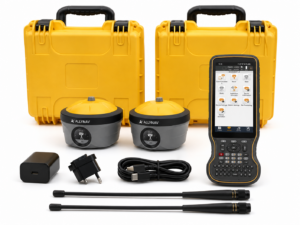

Description

Complete dual-system setup – R92 Base, R92 Rover. Includes Y55 controller. Survey up to 20km range with your own base station, just the receiver, no external radio and cables and large battery needed.

Includes:

• 2 x R92 GNSS Receivers
• Y55 Professional Controller
• AllyPad survey software pre-loaded
• 2 x Carry cases
• All cables, chargers and accessories

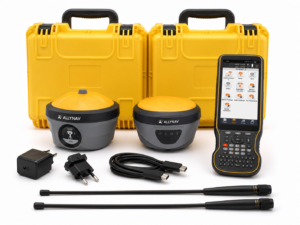

Description

Our Ultimate Survey Bundle. The long range from the R92 Base and all the advance features from the R90 Rover in your hand + the field controller with all the features in the software you can think of.

Includes:

• R92 Receiver
• R90 Receiver
• Y55 Controller with Software
• All chargers, cables and accessories

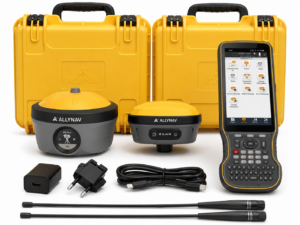

Description

Complete premium dual-system. The long range from the R92 Base and all the advance features from the R26 Pro Rover in your hand + the field controller with all the features in the software you can think of.

Includes:

• R92 Base
• R26 Pro Rover
• Y55 Controller with Software
• All chargers, cables and accessories

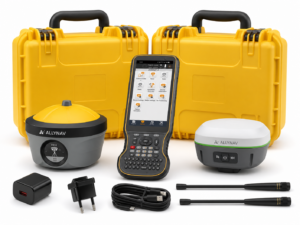

Description

Complete dual-system. The long range from the R92 Base and all the features from the R27 Rover(no cellular modem) in your hand + the field controller with all the features in the software you can think of.

Includes:

• R92 Base
• R27 Rover(no built in cellular moden)
• Y55 Controller with Software
• All chargers, cables and accessories
