Description

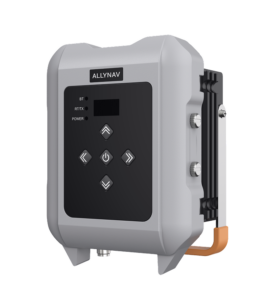

Professional external UHF radio for extended base-rover communication range. Adjustable power output (5W-35W) allows you to balance range and battery life. Essential for large-scale surveys, mining operations, and linear projects where standard internal radios don’t reach. Can be used with any GNSS receiver that supports external radio connection.

• Power Output: 5W-35W adjustable (selectable in 5W steps)
• Frequency Range: 410-470MHz (UHF band)
• Channel Spacing: 12.5kHz / 25kHz
• Effective Range: Up to 40km (line of sight, with high-gain antenna)
• Display: LCD screen showing channel, power level, battery status
• Controls: Easy-access buttons for power, channel selection, power level
• Battery: Built-in 7.4V 5000mAh lithium battery (10+ hours operation)
• Charging: USB-C charging port, 12V vehicle adapter included
• Connector: Standard DB9 serial connector (compatible with most GNSS receivers)
• Rating: IP67 waterproof, dustproof, shock-resistant
• Operating Temperature: -30°C to +65°C
• Mounting: Integrated mounting bracket for tripod or pole mount

What’s Included

• D32 External Radio unit
• High-gain fiberglass antenna (included with full system packages)
• DB9 serial cable (receiver connection)
• USB-C charging cable
• 12V vehicle charging adapter
• Mounting bracket
• Carry case
• User manual

💡 Pro Tip

The D32 radio is included in our “Full System + Radio” packages (R26 Pro, and R90). If you already have a base-rover system but need more range, you can purchase the D32 separately to upgrade your existing setup. but because of courier to import and customs fees, it is way cheaper to purchase it with a system than on its own
